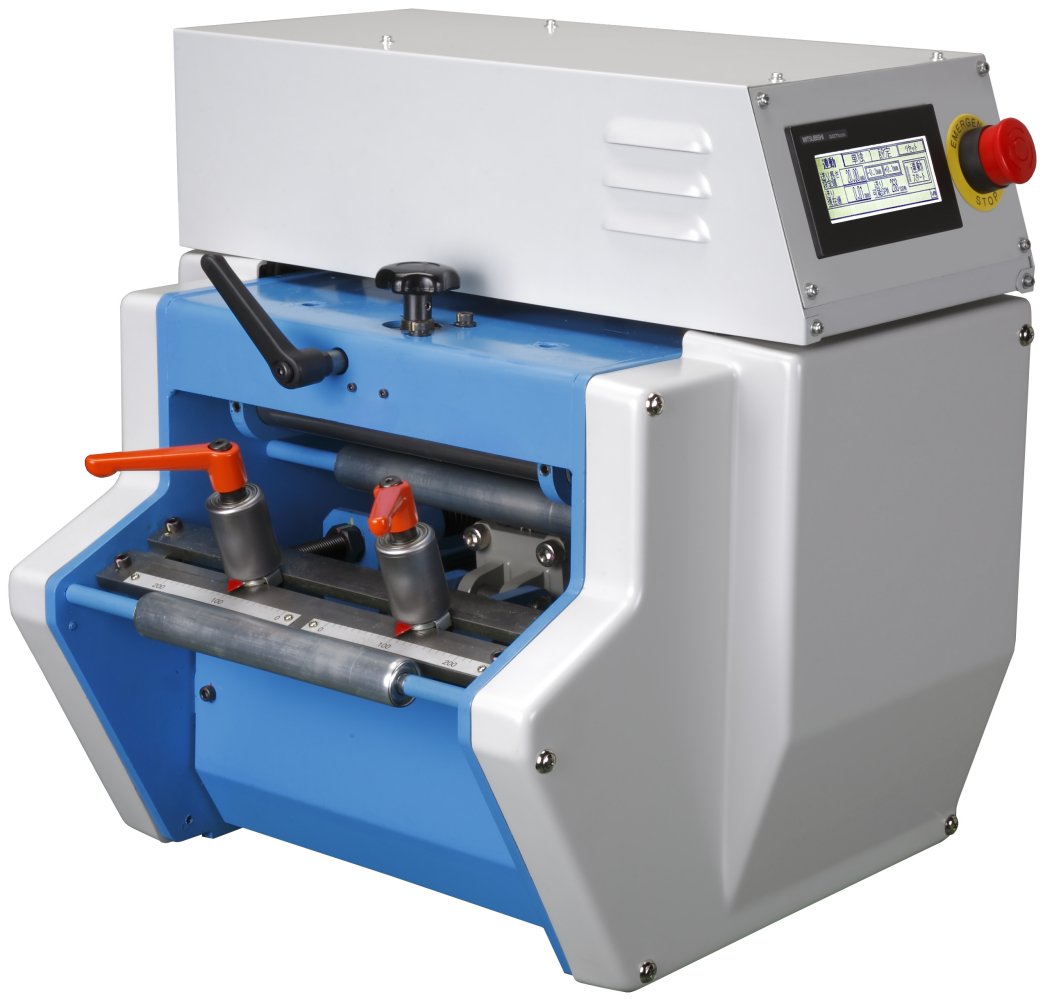

Coil FeedersNC Roll Feeder F-III Series
Total integration with the press for a high-performance line
- Easy operation via the touchscreen.A compact design with a built-in control panel.
- The F-III Series controls automatically calculate acceleration. By merely inputting the feed length and spm, the optimum acceleration is automatically calculated and controlled.
- Hard chrome-plated feed rolls.
Capacity Range
The F-III Series processes strips 200, 300 and 400 mm wide.
Model | Material Thickness x Width | Feed length | Responsive spm (MAX) |
Feeding accuracy | Pass(line)height | Feeding direction ※1 | |
---|---|---|---|---|---|---|---|
Thickness | Width | (mm) | (spm) | (mm) | (mm) | ||
F-20III | 0.3~1.6 | 30~200 | 1.00~4999.99 | 200 | ±0.1 or less | 100~200(above bolster) | Left to right |
0.3~2.3 | 30~140 | ||||||
0.3~3.2 | 30~100 | ||||||
F-30III | 0.3~1.6 | 30~300 | 1.00~4999.99 | 200 | ±0.1 or less | 100~200(above bolster) | Left to right |
0.3~2.3 | 30~200 | ||||||
0.3~3.2 | 30~150 | ||||||
F-40III | 0.3~1.6 | 30~400 | 1.00~4999.99 | 150 | ±0.1 or less | 100~200(above bolster) | Left to right |
0.3~2.3 | 30~200 | ||||||
0.3~3.2 | 30~150 |
- ※1Right→Left Direction is also available.(option)
