Large Servo Tandem Lines

DSF Direct Servo Former

AIDA takes pride in its large servo tandem lines that deliver the highest production speeds in the world, that can draw-form even highly contoured shapes, and that incorporate energy-saving features that only a servo press can provide.
Our servo tandem lines are garnering the attention of automotive manufacturers around the world.
AIDA will continue to contribute cutting-edge technologies for manufacturing the increasingly sophisticated and diverse next generation of automobiles.

Japan US China Southeast Asia Europe

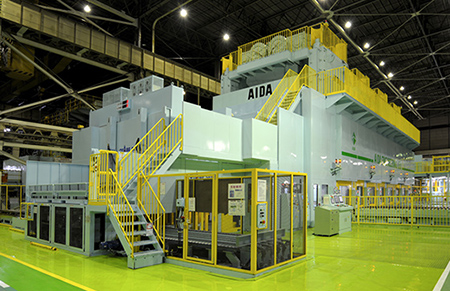

Large Servo Tandem Line Example (Japan)

Installation Site Japan
Delivery Date June 2009
Line SPM 18 SPM
No. 1 Press 23000 kN
Die Cushion Servo Die Cushion
Slide Stroke 1100 mm
Die Height 1400 mm
No. 2 & No. 3 Presses 12000 kN
Slide Stroke 1100 mm
Die Height 1350 mm
No. 4 Press 10000 kN
Slide Stroke 1100 mm
Die Height 1350 mm
Press Spacing 5500 mm
Bolster Area 4500 x 2200 mm

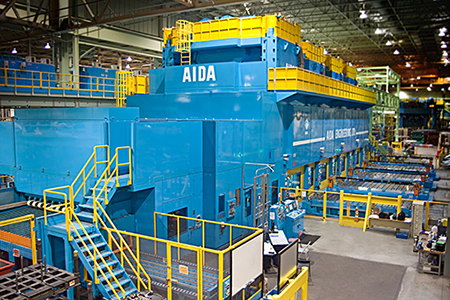

Large Servo Tandem Line Example (US)

Installation Site US
Delivery Date August 2011
Line SPM 18 SPM
No. 1 Press 23000 kN
Die Cushion Servo Die Cushion
Slide Stroke 1100 mm
Die Height 1400 mm
No. 2 Press 16000 kN
Slide Stroke 1100 mm
Die Height 1500 mm
No. 3 Press 12000 kN
Slide Stroke 1100 mm
Die Height 1500 mm
No. 4 Press 10000 kN
Slide Stroke 1100 mm
Die Height 1500 mm
Press Spacing 5900 mm
Bolster Area 5000 x 2500 mm

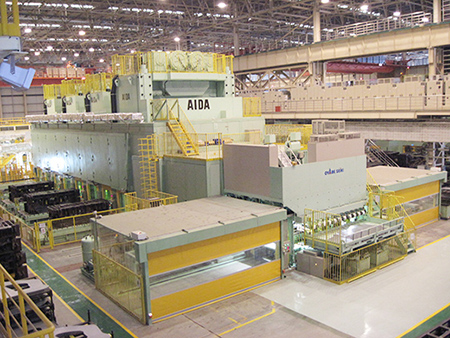

Large Servo Tandem Line Example (China)

Installation Site China
Delivery Date August 2011
Line SPM 18 SPM
No. 1 Press 23000 kN
Die Cushion Servo Die Cushion
Slide Stroke 1100 mm
Die Height 1350 mm
No. 2 & No. 3 Presses 12000 kN
Slide Stroke 1100 mm
Die Height 1350 mm
No. 4 Press 10000 kN
Slide Stroke 1100 mm
Die Height 1350 mm
Press Spacing 5500 mm
Bolster Area 4500 x 2200 mm
Installation Site China
Delivery Date April 2014
Line SPM 20 SPM
No. 1 Press 25000 kN
Die Cushion Servo Die Cushion
Slide Stroke 1100 mm
Die Height 1650 mm
No. 2 Press 18000 kN
Slide Stroke 1100 mm
Die Height 1650 mm
No. 3, No. 4 & No. 5 Presses 12000 kN
Slide Stroke 1100 mm
Die Height 1650 mm
Press Spacing 5700 mm
Bolster Area 5000 x 2500 mm

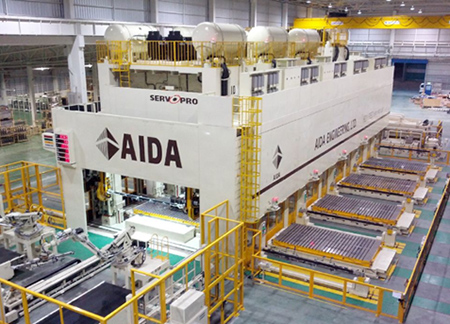

Large Servo Tandem Line Example (Southeast Asia)

Installation Site Thailand
Delivery Date February 2013
Line SPM 18 SPM
No. 1 Press 20000 kN
Die Cushion Servo Die Cushion
Slide Stroke 1100 mm
Die Height 1250 mm
No. 2, No. 3 & No. 4 Presses 10000 kN
Slide Stroke 1100 mm
Die Height 1250 mm
Press Spacing 5500 mm
Bolster Area 4500 x 2500 mm

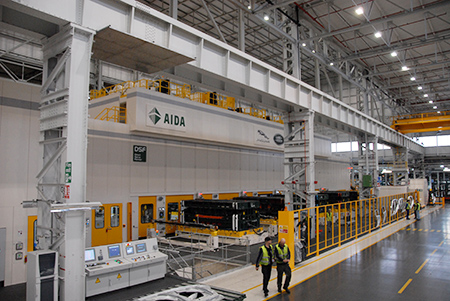

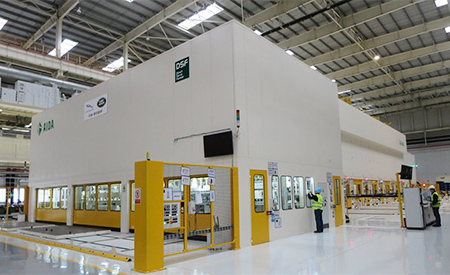

Large Servo Tandem Line Example (Europe)

Installation Site Great Britain
Delivery Date March 2014
Line SPM 20 SPM
No. 1 Press 25000 kN
Die Cushion Servo Die Cushion
Slide Stroke 1100 mm
Die Height 1650 mm
No. 2 Press 18000 kN
Slide Stroke 1100 mm
Die Height 1650 mm
No. 3, No. 4 & No. 5 Presses 12000 kN
Slide Stroke 1100 mm
Die Height 1650 mm
Press Spacing 5700 mm
Bolster Area 5000 x 2500 mm
