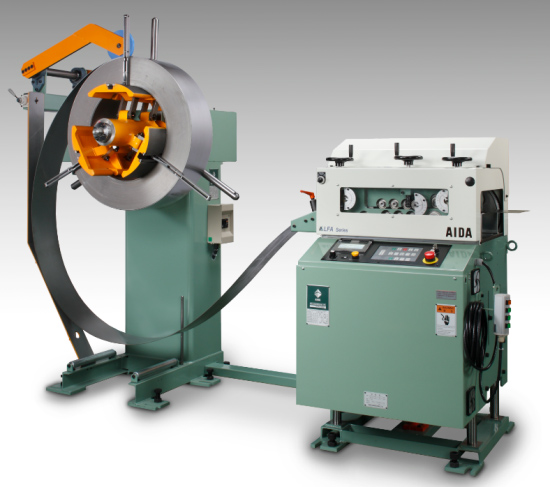

Coil FeedersAIDA Straightener Feeder LFA-L Series
Base machine for low-cost automation
- 4.6 inch HMI displays operational status and maintenance information for reduction of hours of work. 3-languages operator display is standard.(English, Japanese ,Chinese)
- The straightener feeder entrance is equipped with lever lock-type side guides and the uncoiler is equipped with side-type guides, and both types can be adjusted without using any tools.
- Zigzag Feed Function (Optional equipment) reduces scrap and lowers cost.
Capacity Range
Material width 50mm ~ 600mm / Material thickness 0.3~3.2mm
You can select between single and double uncoiler units.
Model | Material width | Material thickness | Material Thickness x Width(mm) | Coil weight(Max) | Coil outside diameter | Coil inside diameter | Feed length | Max. Feed Speed | |
---|---|---|---|---|---|---|---|---|---|
(mm) | (mm) | Thickness | Width | (kg) | (mm) | (mm) | (mm) | (m/min) | |
LFL-300E | 30~300 | 0.3~3.2 | 0.3~1.6 | 30~300 | 1200 | φ800~φ1200 | φ508 | 10~300 | 15 |
0.3~2.3 | 30~200 | ||||||||
0.3~3.2 | 30~110 | ||||||||
LFL-300R | 30~300 | 0.3~3.2 | 0.3~1.6 | 30~300 | 2000×2 | φ800~φ1200 | φ508 | 10~300 | 15 |
0.3~2.3 | 30~200 | ||||||||
0.3~3.2 | 30~110 |
