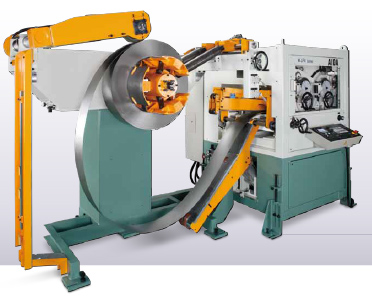

Coil FeedersAIDA Straightener Feeder LFA-G Series
A best-selling straightener feeder model that provides superior frame rigidity.
- Automation of threading operations from the uncoiler up to the die.
- The optional release amount can be automatically set for the thickness of the material currently being run, thereby freeing you from making laborious release amount settings.
- Zigzag Feed Function (Optional equipment) reduces scrap and lowers cost.
Capacity Range
Material width 50mm ~ 600mm / Material thickness 0.5~6.0mm
You can select between single and double uncoiler units.
| Model | Material width | Material thickness | Material Thickness x Width(mm)(※4) | Coil weight(Max) | Coil O.D. | Coil I.D. | Feed length | Max. Feed Speed | |
|---|---|---|---|---|---|---|---|---|---|
| (mm)※1 | (mm) | Thickness | Width ※1 | (kg)※2 | (mm) | (mm)※3 | (mm) | (m/min) | |
| LFG-400E | (50) 70～400 | 0.5～6.0 | 0.5～4.5 | (50)70～400 | 3000(5000) | φ800～φ1500 | φ508(φ610) | 10～500 | 25 |
| 0.5～5.0 | (50)70～380 | ||||||||
| 0.5～6.0 | (50)70～300 | ||||||||
| LFG-400R | (50) 70～400 | 0.5～6.0 | 0.5～4.5 | (50)70～400 | 3000(5000)×2 | φ800～φ1500 | φ508(φ610) | 10～500 | 25 |
| 0.5～5.0 | (50)70～300 | ||||||||
| 0.5～6.0 | (50)70～400 | ||||||||
| LFG-600E | (50) 70～600 | 0.5～6.0 | 0.5～3.2 | (50)70～600 | 3000(5000) | φ800～φ1500 | φ508(φ610) | 10～500 | 25 |
| 0.5～4.5 | (50)70～360 | ||||||||
| 0.5～5.0 | (50)70～290 | ||||||||
| 0.5～6.0 | (50)70～200 | ||||||||
| LFG-600R | (50) 70～600 | 0.5～6.0 | 0.5～3.2 | (50)70～600 | 3000(5000)×2 | φ800～φ1500 | φ508(φ610) | 10～500 | 25 |
| 0.5～4.5 | (50)70～360 | ||||||||
| 0.5～5.0 | (50)70～290 | ||||||||
| 0.5～6.0 | (50)70～200 | ||||||||
| LFG-800E | 100～800 | 0.5～6.0 | 0.5～2.3 | 100～800 | 3000(5000) | φ800～φ1500 | φ508(φ610) | 10～500 | 25 |
| 0.5～3.2 | 100～600 | ||||||||
| 0.5～4.5 | 100～320 | ||||||||
| 0.5～5.0 | 100～250 | ||||||||
| 0.5～6.0 | 100～180 | ||||||||
| LFG-800R | 100～800 | 0.5～6.0 | 0.5～2.8 | 100～800 | 3000(5000)×2 | φ800～φ1500 | φ508(φ610) | 10～500 | 25 |
| 0.5～3.2 | 100～630 | ||||||||
| 0.5～4.5 | 100～320 | ||||||||
| 0.5～5.0 | 100～250 | ||||||||
| 0.5～6.0 | 100～180 | ||||||||
- Note 1:Values given in ( ) in ※1~3 denote standard optional settings.
- Note 2:The Material Thickness x Width dimensions in ※4 are for standard types. (Larger types are also available.)
