Coil FeedersDedicated Lines for EV Drive Motor Cores

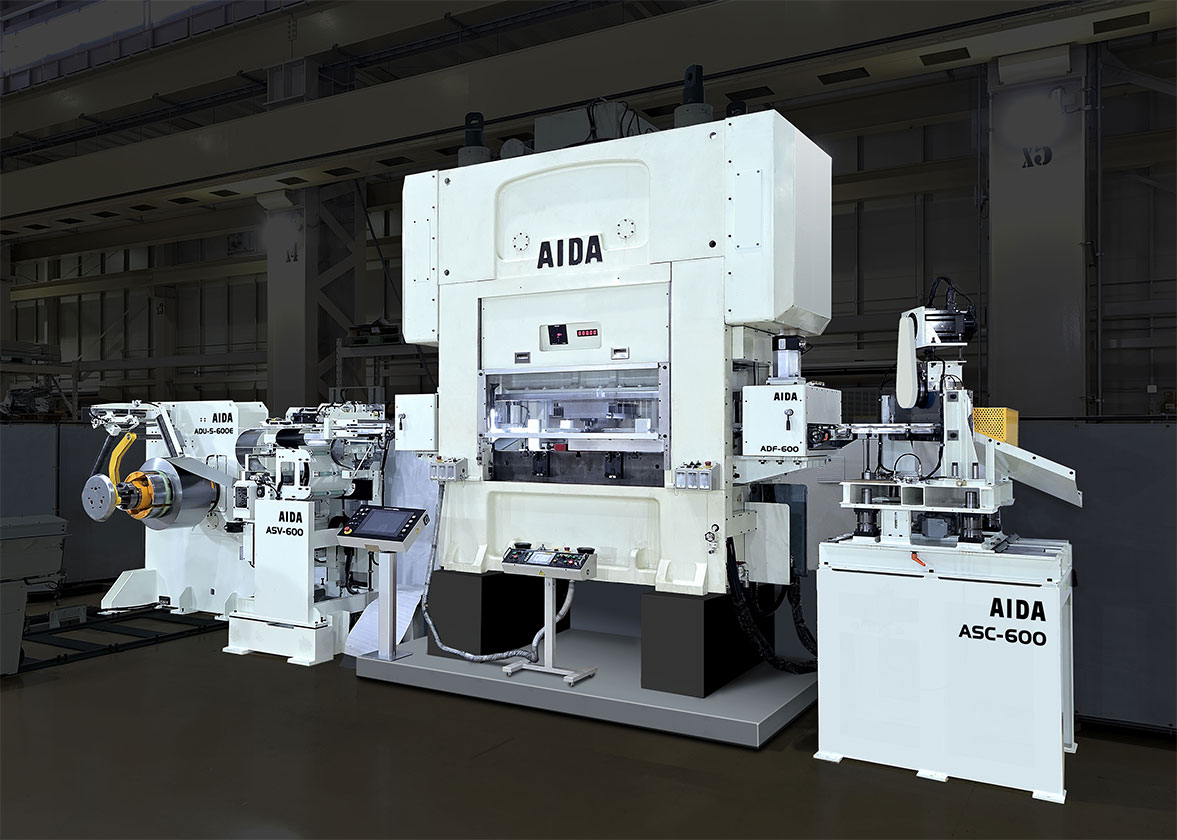

We offer comprehensive production lines for making EV drive motor cores.
- All AIDA peripheral equipment has been developed in-house.
We provide a comprehensive system integrated with the press. - Offering an industry-leading 130 m/sec feed speed (※600 mm-wide material)
The high-torque servo motor technologies that AIDA developed in-house for its presses have been leveraged to deliver powerful material feeding capabilities.
Capacity Range
We offer uncoilers, S-loop equipment, feeders, core rotator equipment, and scrap cutters. (We offer 2 types of feeders and scrap cutters to accommodate 450 mm and 600 mm material widths)
Please contact AIDA for specifications for the various equipment.
| 450 mm Width | 600 mm Width | |
| Coil Weight (kg)※1 | MAX. 3000×1 | MAX. 5000×1 |
| Coil I.D. (mm) | φ508 | φ508 |
| Coil O.D. (mm) | MAX. φ1500 | MAX. φ1500 |
| Coil Material Width (mm) | 100～450 | 150～600 |
| Coil Material Thickness (mm) | 0.15～0.5 | 0.15～0.5 |
| Line Speed (m/min.)※2 | 15～120 | 15～130 |
| Line SPM (min-1) | 100～450 | 100～450 |
※1 When using electromagnetic sheets.
※2 This can vary depanding on the feed conditions.
