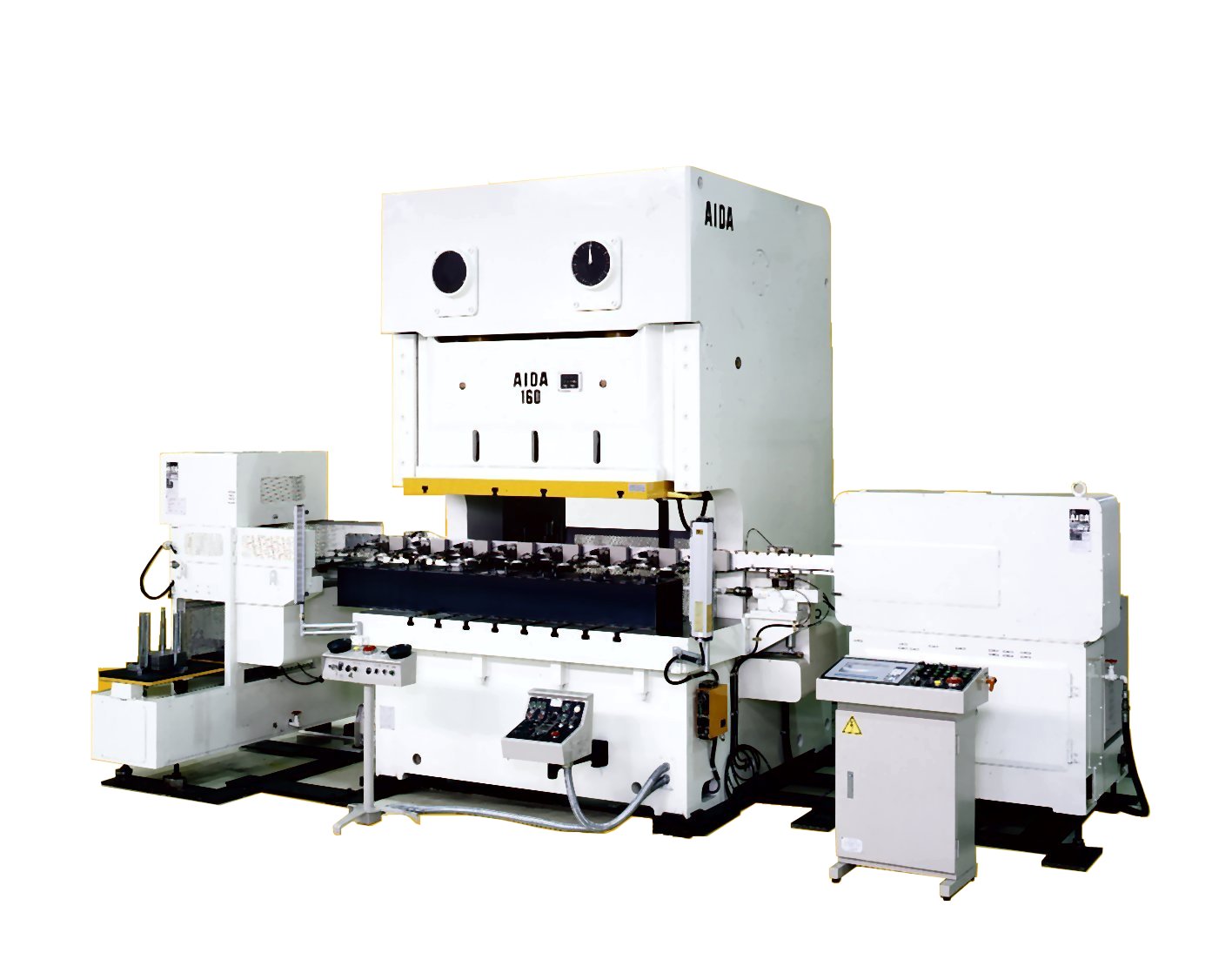

Transfer EquipmentAIDA Multipacer NCAH-III Series
This space-saving line allows the production of small products involving3~6processes on a single press.
- Ideal for the one-on-one combination of press and robot.
- Combining feed pitch changes and/or feed direction changes with the material feeder is flexible.
Capacity Range
The feed length range from 200mm to 600mm. Extensive peripheral devices such as blank or coil feed units and intermediate stages are also available.
| Model | Drive Type | Feed Stroke | Lift Stroke | Conveyance Weight (Max) | Number of Presses in Line | Total Conveyance Weight | Cycle Time | |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (kg) | (units) | (Work+Clamp)(kg) | (sec) ※1 | |||
| NCAH-III-60/6 | (1) | Feed-lift 2-axis servo motor type | 200～600 | 20～60(Variable) | MAX3.0 | 1 | 25 | 1.4～2.0 |
| (2) | Feed-lift 2-axis servo motor type | 200～600 | 20～60(Variable) | MAX3.0 | 1 | 25 | 1.4～2.0 | |
- ※1The cycle time is determined by the motion range.
