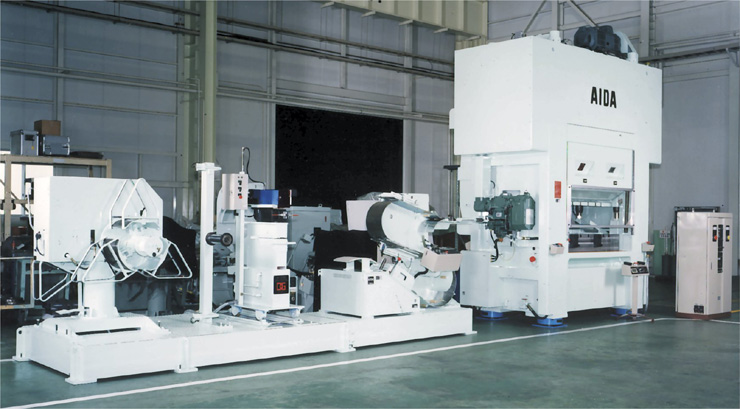

High Speed Automatic PressesAIDA High Speed Press HMX Series
Pursuing improved productivity and high-precision stamping.
- The highly rigid frame achirves the long-team minimal BDC deviation required for integrated lamination dies.
- Front-back and left-right slide movement is minimized by long slide guiding comprised of pre-loaded, eight-sided, right-angle slide guides
Capacity Range
Press capacities range from 1250 kN to 3000 kN. A selection of bed sizes is also available.
| Model | Capacity | Stroke Length | Woking energy | Strokes per minute (No Load) | Die Height | Slide Area | Bolster Area | Max upper die weight | Side opening |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | J | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (kg) | (mm) | |
| HMX-1250 | 1250 | 30 | 1200 | 200～800 | 380～430 | 1300×600 | 1300×850 | 500 | 350×Die Height |
| HMX-2000 | 2000 | 30 | 2000 | 200～600 | 400～480 | 1700×650 | 1700×950 | 900 | 460×Die Height |
| HMX-3000 | 3000 | 30 | 3000 | 160～500 | 420～520 | 2000×750 | 2000×1000 | 1300 | 560×Die Height |
| HMX-3000W | 3000 | 30 | 3000 | 120～410 | 420～520 | 2260(2300)×1000 ※1 | 2300×1200 | 1500 | 560×Die Height |
- ※1The value in ( )indicates the area for tool change.
