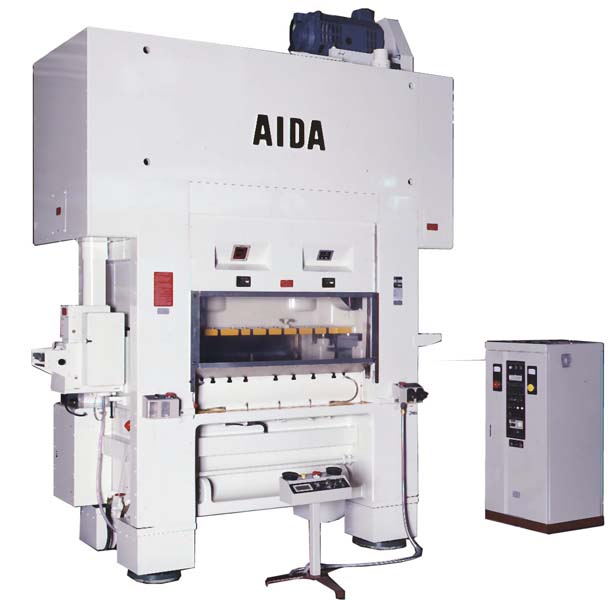

High Speed Automatic PressesAIDA High Speed Press HMX-M Series
Pursuing improved productivity and high-precision stamping.
- The highly rigid frame achieves the long-team minimal BDC deviation required for integrated lamination dies.
- Slide lateral movement is suppressed during operation by guide posts which make the most of the merits of slide bearings and ball bearings.
Capacity Range
Press capacities range 1250 kN and 2000 kN. A selection of bed sizes is also available.
| Model | Capacity | Stroke Length | Working Energy | Strokes per Minute (No Load) | Die Height | Slide Area | Bolster Area | Max upper die weight | Side opening |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | (J) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (kg) | (mm) | |
| HMX-1250M | 1250 | 30 ※1 | 1200 | 160～500 | 380～430 | 1300×600 | 1300×850 | 500 | 450×Die Height |
| HMX-2000M | 2000 | 30 ※1 | 2000 | 160～450 | 400～480 | 1700×650 | 1700×950 | 900 | 530×Die Height |
- ※1Stroke lengths less than 30 mm can also be accommodated.
