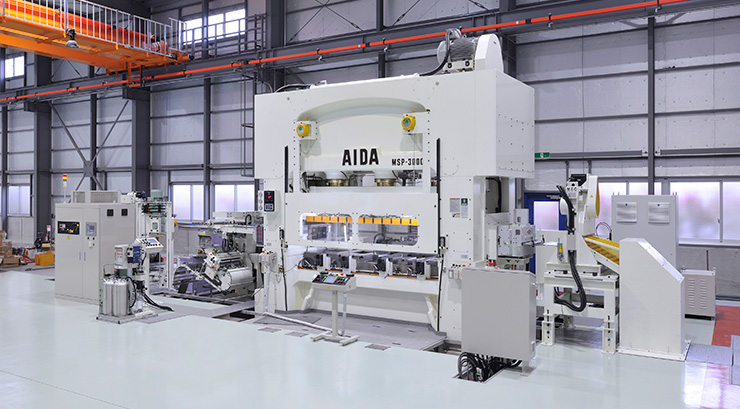

High Speed Automatic PressesAIDA High Speed Press (Multi Suspension)
MSP Series
A state-of-the-art press with a multi-suspension design.
- The multi-suspension system reduces slide deflection and tilting.
- The columns, bed, bearings, and points work together to achieve high rigidity.
- Equipped with a new fast-response clutch/brake unit.
- We also offer an even wider MSP-4000-430 model to accommodate the additional stages required for forming increasingly complex motor core shapes.
Capacity Range
Press capacities are 2200 kN, 3000 kN, and 4000 kN.
| Model | Capacity | Stroke Length | Working energy | Strokes per Minute (No Load) | Die Height | Slide Area | Bolster Area | Max upper die weight | Side opening |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | J | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (kg) | (mm) | |
| MSP-2200-200 | 2200 | 30 | 2000 | 120～500 | 420～480 | 2000×800 | 2000×1000 | 1800 | 490 |
| MSP-3000-230 | 3000 | 30 | 3000 | 120～420 | 420～520 | 2300×800 | 2300×1000 | 2000 | 490 |
| MSP-3000-270 | 3000 | 30 | 3000 | 100～400 | 470～520 | 2700×800 | 2700×1000 | 2300 | 490 |
| MSP-4000-280 | 4000 | 30 | 4000 | 100～350 | 500～600 | 2800×900 | 2800×1200 | 2300 | 980 |
