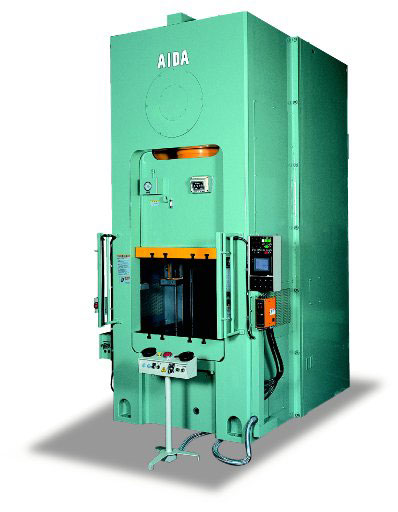

Mid-Size and Large PressesAIDA Heavy Stamping Press S1-E Series
Further expanding the limits of thick material forming.
- The S1-E Series overcomes three limitations related to thick material forming: 1) Die life, 2) Vibration and noise, and 3) High precision and high productivity.
- Featuring AIDA's unique die ‘slow-touch’ link motion and a separate-type ring frame that keeps elongation to a minimum.
- A slide knockout and a die cushion for blanking and drawing thick plates are available as standard options.
Capacity Range
Press capacities are 3000 kN and 5000 kN.
Model | Capacity | Stroke Length | Strokes per minute (No Load) | Die Height | Slide Area | Bolster Area | Rated tonnage point above BDC | Slide knockout capacity※1 | Die cushion capacity |
---|---|---|---|---|---|---|---|---|---|
(kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (kN) | (kN) | |
S1-3000E | 3000 | 250 | 15~40 | 570 | 1000×900 | 1000×985 | 13 | 30 | 160 ※1 |
250 ※2 | |||||||||
S1-5000E | 5000 | 300 | 15~35 | 650 | 1200×1100 | 1200×1215 | 13 | 50 | 260 ※1 |
400 ※2 |
- ※1At 0.5MPa air pressure ※2 At 0.8MPa air pressure
