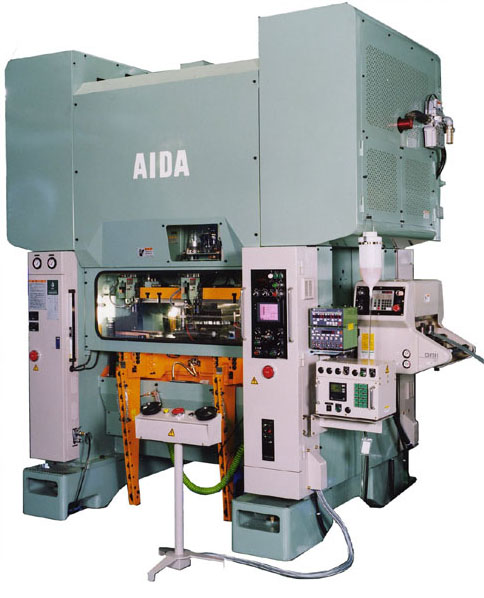

Mid-Size and Large PressesAIDA Progressive Die Mechanical Press
UMX Series
For the precision progressive forming of small parts from thin material.
- A highly practical press, the UMX delivers both the functionality and the cost efficiency required for high-precision metalforming.
- Highly accurate forming is achievable through a highly rigid unitized straightside frame and a 2-point slide suspension. The 6 perpendicular ‘long slide guide’ surfaces can reliably withstand off-center loads and extend die life.
- Used for high-precision stamped parts for electrical, electronic, and information and telecommunications equipment, and of bearing-related parts.
Capacity Range
Press capacity is 1100 kN. Selection of type (1) or (2) is based on stroke length and SPM.
| Model | Capacity | Stroke Length | Strokes per minute under noload | Die Height | Slide Area | Bolster Area | Side opening | Working surface height | |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (mm) | ||
| UMX-1100 | (1) | 1100 | 60 | 70～200 | 360 | 1200×520 | 1200×550 | (210～450)×300 | 1100 |
| (2) | 1100 | 80 | 60～180 | 350 | 1200×520 | 1200×550 | (210～450)×300 | 1100 | |
