Detail

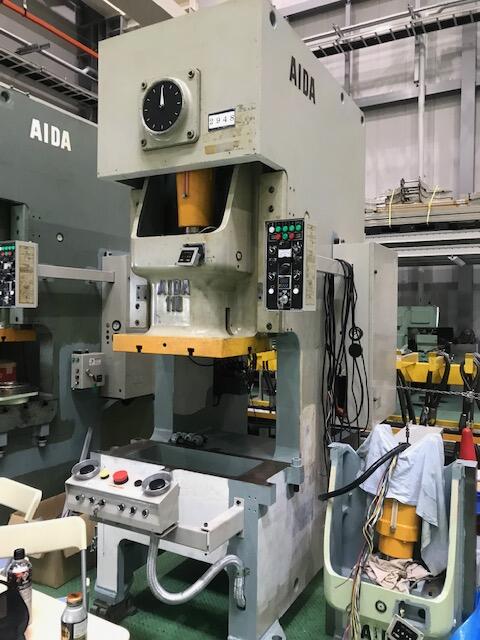

C Frame (Gap Frame)
- Ref. No.
- 2948
- Mfg'r.
- AIDA
- Date of Mfg.
- 1990
- Stock Location
- Kanagawa/SAGAMIHARA
Unit Specifications
| Model | NC1-110(1) | |
|---|---|---|
| Tonnage Capacity | tf | 110 |
| Stroke Length | mm | 110 |
| SPM | spm | 50～100 |
| Die Height | mm | 320 |
| Slide Adjustment | mm | 90 |
| Slide Dimensions (L/R x F/B) |
mm | 630×520 |

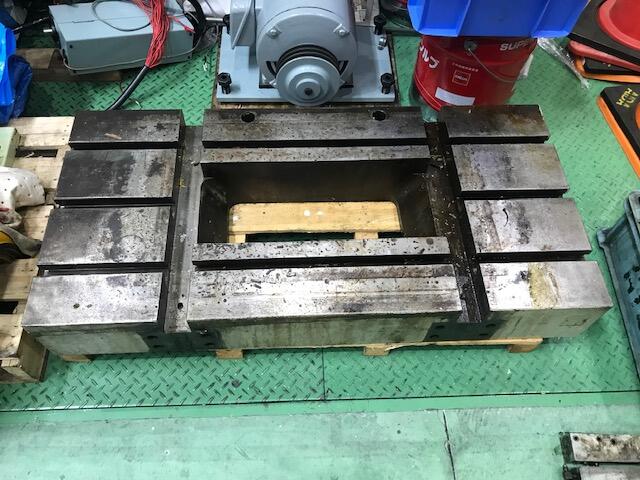

| Bolster Dimensions (L/R x F/B) |
mm | 1070×520 |
| Main Motor | kW×p | VS11kw |
Special Auxiliary Equipment
1.Die Cushion :Not Included
Standard Auxiliary Equipment
1.Light Curtains ： Included
2.Mounts ： Included
3.Paint Condition ： Re-painted before shipment
4.Internal Inspection ： Performed before shipment
