Detail

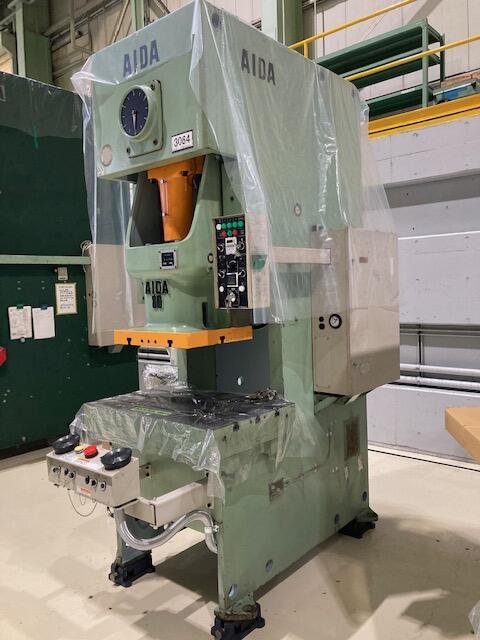

C Frame (Gap Frame)
- Ref. No.
- 3064
- Mfg'r.
- AIDA
- Date of Mfg.
- 1989
- Stock Location
- Kanagawa/SAGAMIHARA
Unit Specifications
| Model | NC1-80(2) | |
|---|---|---|
| Tonnage Capacity | tf | 80 |
| Stroke Length | mm | 160 |
| SPM | spm | 40～75 |
| Die Height | mm | 320 |
| Slide Adjustment | mm | 80 |
| Slide Dimensions (L/R x F/B) |
mm | 540*460 |

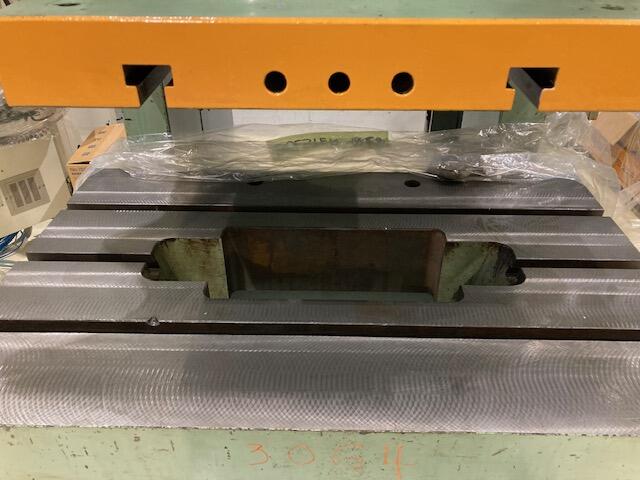

| Bolster Dimensions (L/R x F/B) |
mm | 950*600 |
| Main Motor | kW×p | VS 7.5kw |
Special Auxiliary Equipment
Standard Auxiliary Equipment
1.Light Curtains : Included
2.Mounts : Included
Standard Customer Acceptance Conditions
1.Paint Inspection : Re-painted before shipment
2.Internal Inspection : Performed before shipment
