Detail

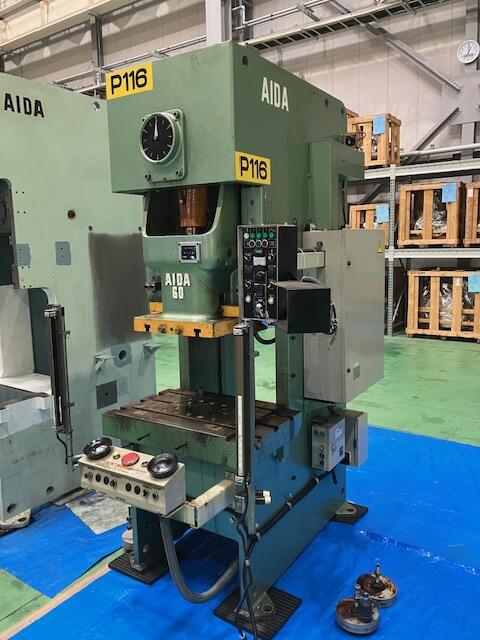

C Frame (Gap Frame)
- Ref. No.
- 3133
- Mfg'r.
- AIDA
- Date of Mfg.
- 1989
- Stock Location
- Komaki/Aichi
Unit Specifications
| Model | NC1-60(2) | |
|---|---|---|
| Tonnage Capacity | tf | 60 |
| Stroke Length | mm | 140 |
| SPM | spm | 45～85 |
| Die Height | mm | 300 |
| Slide Adjustment | mm | 70 |
| Slide Dimensions (L/R x F/B) |
mm | 480*400 |

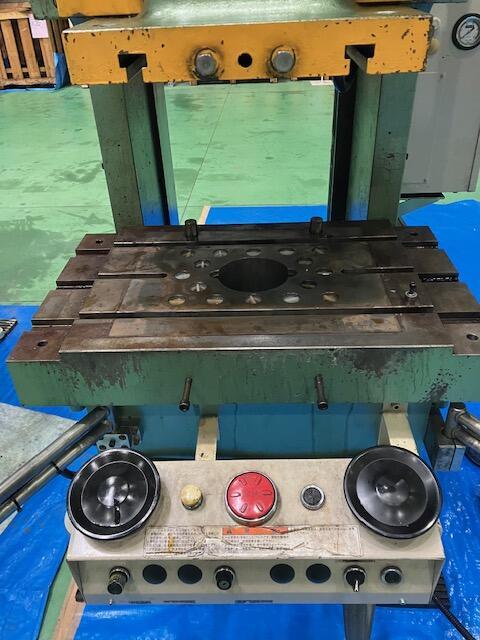

| Bolster Dimensions (L/R x F/B) |
mm | 870*520 |
| Main Motor | kW×p | VS 5.5KW |
Special Auxiliary Equipment
Standard Auxiliary Equipment
1.Light Curtains : Included
2.Mounts : Included
Standard Customer Acceptance Conditions
1.Paint Inspection : Re-painted before shipment
2.Internal Inspection : Performed before shipment
