Detail

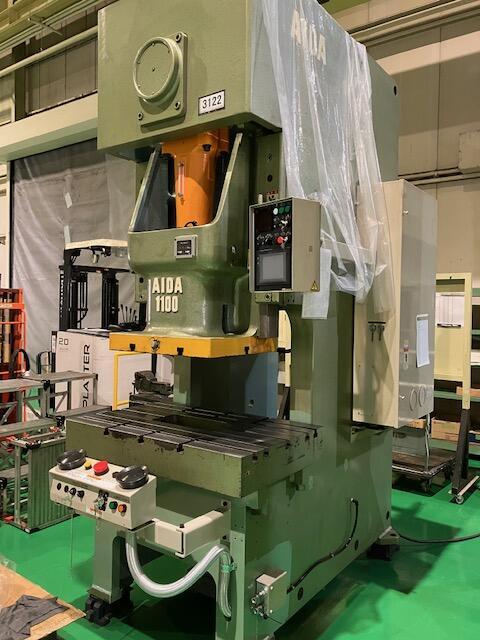

C Frame (Gap Frame)
- Ref. No.
- 3122
- Mfg'r.
- AIDA
- Date of Mfg.
- 2005
- Stock Location
- Kanagawa/SAGAMIHARA
Unit Specifications
| Model | NC1-1100(2)E | |
|---|---|---|
| Tonnage Capacity | tf | 110 |
| Stroke Length | mm | 180 |
| SPM | spm | 35～65 |
| Die Height | mm | 350 |
| Slide Adjustment | mm | 90 |
| Slide Dimensions (L/R x F/B) |
mm | 630*520 |

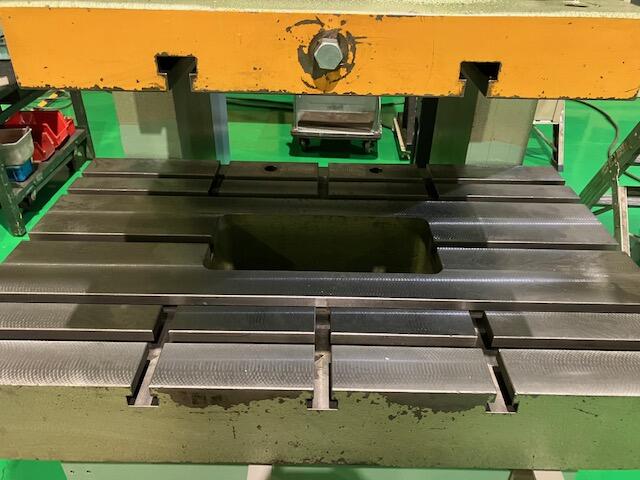

| Bolster Dimensions (L/R x F/B) |
mm | 1070*680 |
| Main Motor | kW×p | INV 7.5kw |
Special Auxiliary Equipment
Standard Auxiliary Equipment
1. Light Curtains：Included
2. Mounts：Included
Standard Customer Acceptance Conditions
1. Paint Inspection : Re-painted before shipment
2. Internal Inspection : Performed before shipment
