Detail

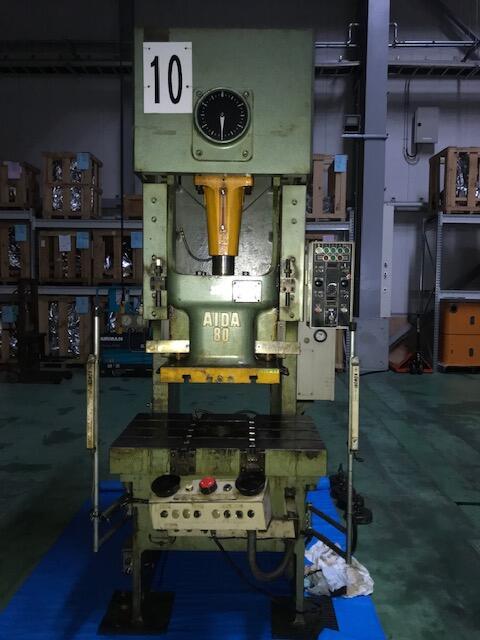

C Frame (Gap Frame)
- Ref. No.
- 3081
- Date of Mfg.
- 1995
- Stock Location
- Aichi
Unit Specifications
| Model | NC1-80(2) | |
|---|---|---|
| Tonnage Capacity | tf | 80t |
| Stroke Length | mm | 160ｍｍ |
| SPM | spm | 60 |
| Die Height | mm | 320ｍｍ |
| Slide Adjustment | mm | 80ｍｍ |
| Slide Dimensions (L/R x F/B) |
mm | 540×460 |
| Bolster Dimensions (L/R x F/B) |
mm | 950×600 |
| Main Motor | kW×p | 7.5kw |
Special Auxiliary Equipment
Standard Auxiliary Equipment
Light Curtains:Included
Mounts:Included
