Detail

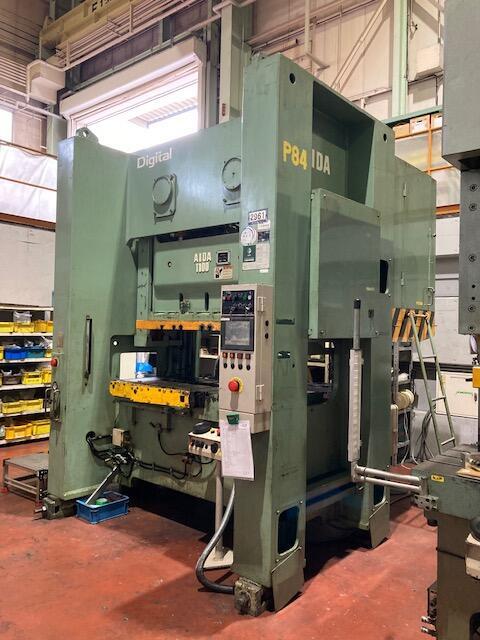

Straight-Side Press
- Ref. No.
- 2961
- Mfg'r.
- AIDA
- Date of Mfg.
- 2004
- Stock Location
- Kanagawa/SAGAMIHARA
Unit Specifications
| Model | NS2-110(D) | |
|---|---|---|
| Tonnage Capacity | tf | 110 |
| Stroke Length | mm | 180 |
| SPM | spm | 0～55 |
| Die Height | mm | 350 |
| Slide Adjustment | mm | 90 |
| Slide Dimensions (L/R x F/B) |
mm | 1360*520 |
| Bolster Dimensions (L/R x F/B) |
mm | 1660*680 |
| Main Motor | kW×p | SERVO MOTOR |
Special Auxiliary Equipment
Standard Auxiliary Equipment
1.Light Curtains ： Included
2.Mounts ： Included
3.Paint Condition ： Re-painted before shipment
4.Internal Inspection ： Performed before shipment
