Detail

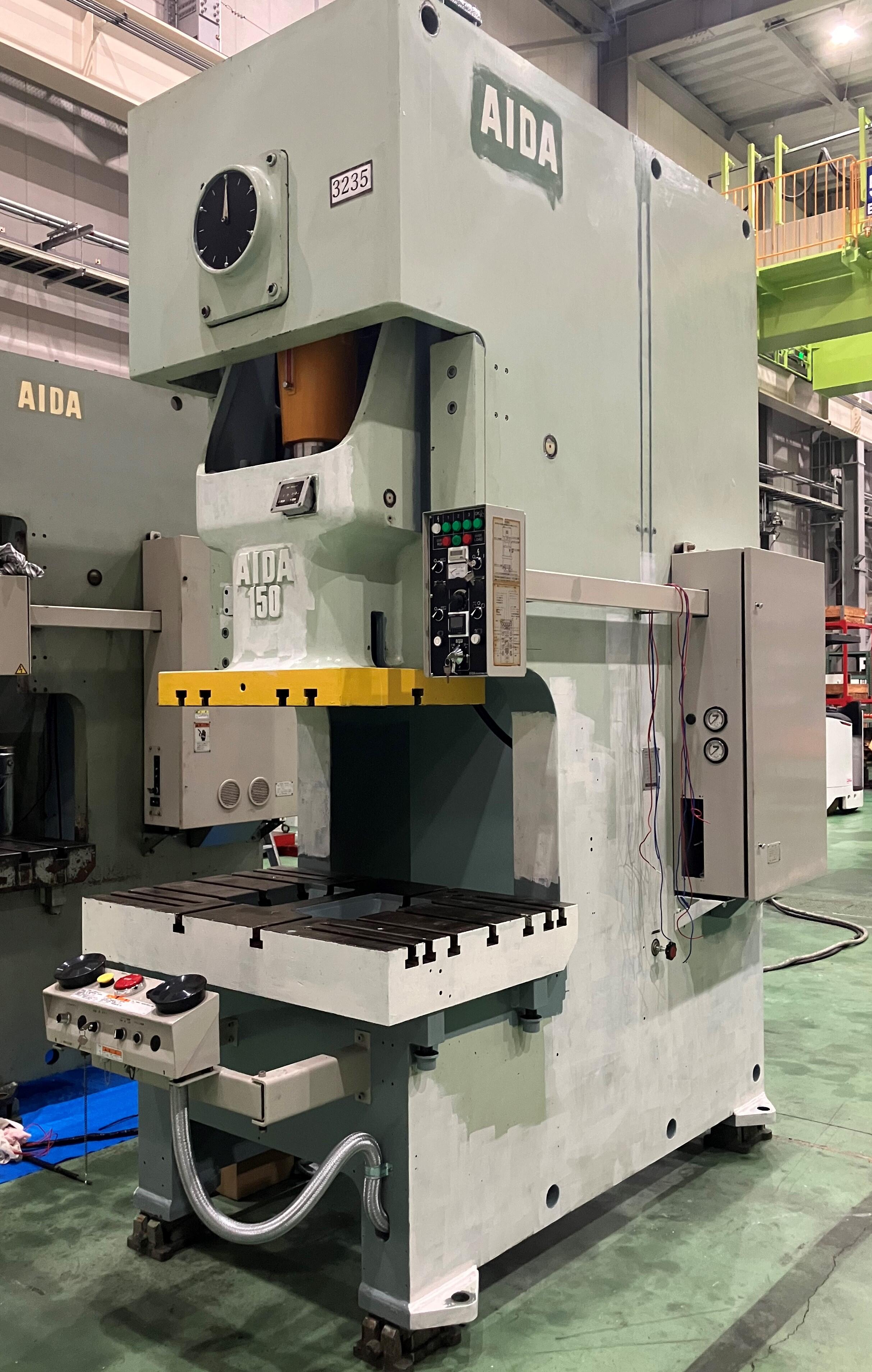

C Frame (Gap Frame)
- Ref. No.
- 3235
- Mfg'r.
- AIDA
- Date of Mfg.
- 1987
- Stock Location
- Aichi/KOMAKI
Unit Specifications
| Model | NC1-150(2) | |
|---|---|---|
| Tonnage Capacity | tf | 150 |
| Stroke Length | mm | 200 |
| SPM | spm | 30～55 |
| Die Height | mm | 400 |
| Slide Adjustment | mm | 100 |
| Slide Dimensions (L/R x F/B) |
mm | 700×580 |

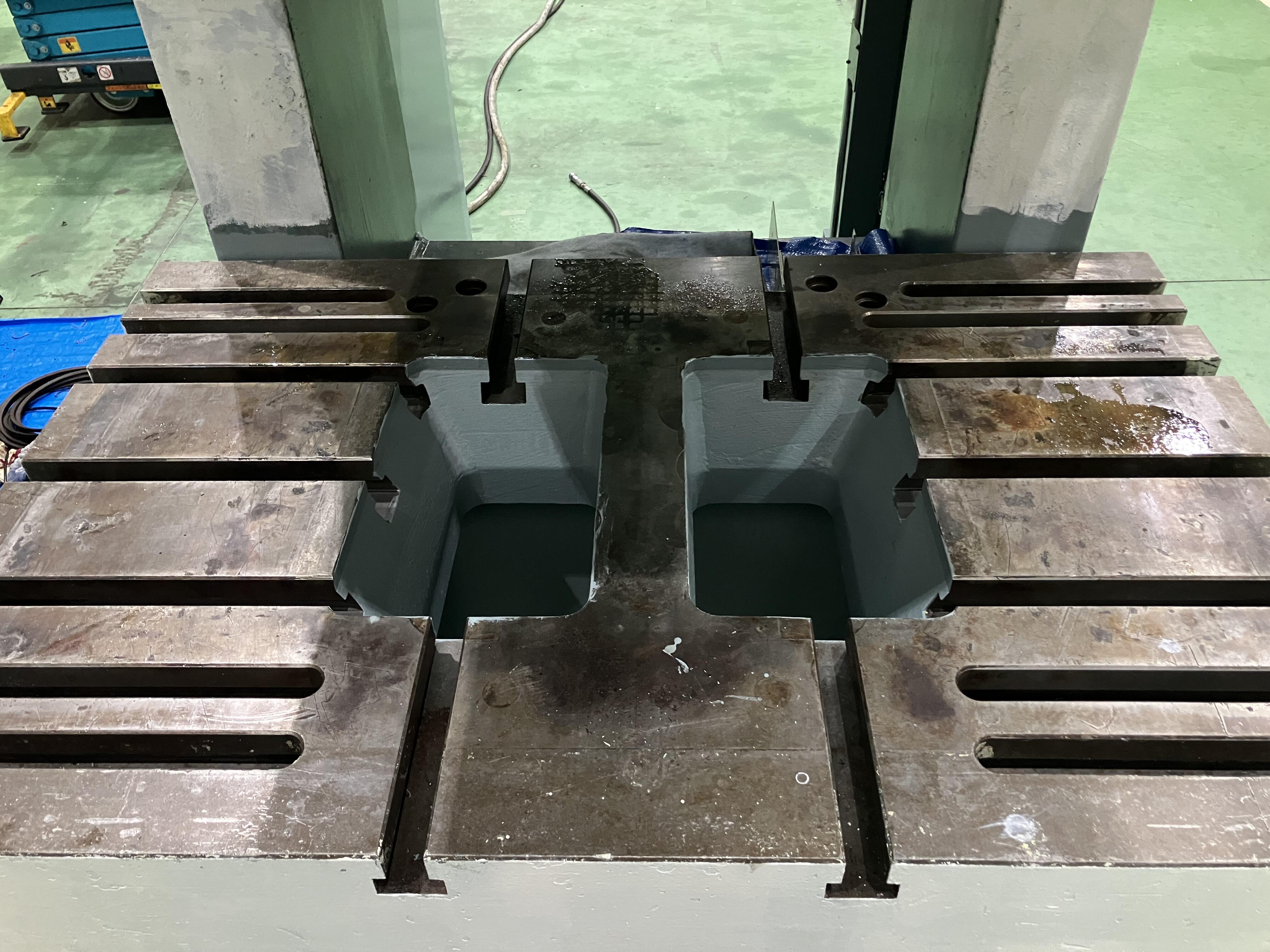

| Bolster Dimensions (L/R x F/B) |
mm | 1170×760 |
| Main Motor | kW×p | VS11kw |
Special Auxiliary Equipment
1.Die Cushion :Not Included
Standard Auxiliary Equipment
1. Light Curtains：Included
2. Mounts：Included
Standard Customer Acceptance Conditions
1. Paint Inspection : Re-painted before shipment
2. Internal Inspection : Performed before shipment
