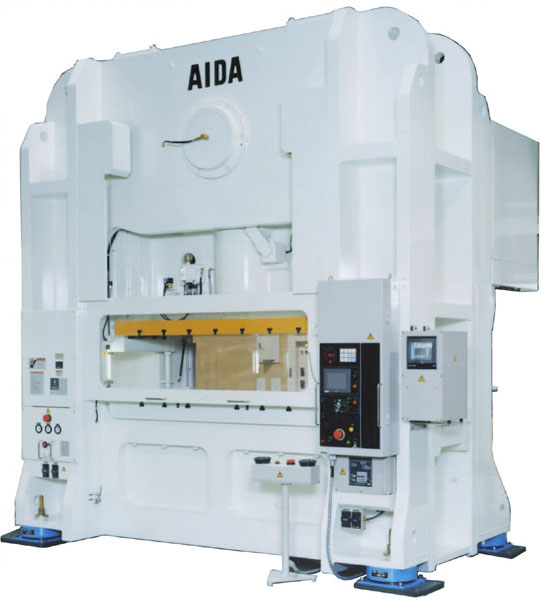

Precision Forming PressAIDA Ultimate Precision Forming Press UL Series
The Ultimate next generation forming machine.
- Its innovative 9 point support system enables high precision forming that expands the boundaries of metalforming.
- Featuring zero clearance slide guides and a highly rigid frame construction.
- Suitable for various applications, from progressive, transfer and cold forging forming.
- The New Tie-Rod Frame UL-20000 Series can handle the high-rigidity dies used in precision cold forging applications, etc., where high forming loads are required.
Capacity Range
The standard specification range is from 2500 kN to 6000 kN. Larger custom presses are also available.
Model | Capacity | Stroke Length | Strokes per minute (No Load) | Slide Adjustment | Die Height | Slide Area | Bolster Area | Side opening |
---|---|---|---|---|---|---|---|---|
(kN) | (mm) | (spm) | (mm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | |
UL-1600(1)-120-75 | 1600 | 100 | 70~120 | 100 | 350 | 1200×750 | 1200×750 | 520 |
150 | 60~100 | 400 | ||||||
UL-2000(1)-120-80 | 2000 | 120 | 60~110 | 100 | 450 | 1200×800 | 1200×800 | 540 |
UL-2000(1)-155-83 | 2000 | 200 | 40~80 | 100 | 450 | 1550×830 | 1550×950 | 540 |
UL-2500(1)-155-83 | 2500 | 120 | 60~110 | 100 | 450 | 1550×830 | 1550×950 | 570 |
UL-2500(1)-185-90 | 2500 | 200 | 40~80 | 100 | 450 | 1850×900 | 1850×950 | 570 |
UL-3000(1)-185-90 | 3000 | 120 | 60~110 | 100 | 550 | 1850×900 | 1850×950 | 600 |
UL-3000(1)-200-90 | 3000 | 200 | 40~80 | 100 | 550 | 2000×900 | 2000×1000 | 600 |
UL-4000(1)-185-90 | 4000 | 200 | 30~80 | 100 | 650 | 1850×900 | 1850×1000 | 660 |
UL-4000(1)-200-90 | 4000 | 250 | 30~70 | 100 | 700 | 2000×900 | 2000×1000 | 660 |
UL-5000(1)-185-95 | 5000 | 200 | 30~80 | 100 | 650 | 1850×950 | 1850×1050 | 750 |
UL-5000(1)-200-95 | 5000 | 250 | 30~70 | 100 | 700 | 2000×950 | 2000×1050 | 750 |
UL-6000(1)-185-100 | 6000 | 200 | 30~80 | 100 | 700 | 1850×1000 | 1850×1000 | 800 |
UL-6000(1)-200-100 | 6000 | 250 | 30~70 | 100 | 700 | 2000×1000 | 2000×1000 | 800 |
