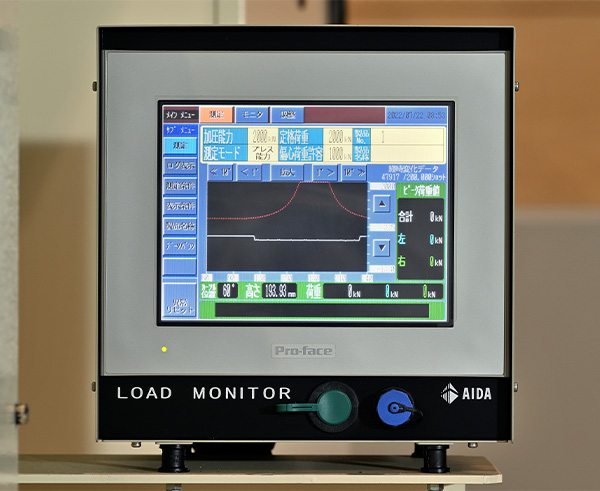

OthersAIDA LOAD ANALAYZER ALA3
From the Realm of Experience to the Realm of Digital Numerical Management
- Select between 3 Types of Load Monitoring
① Maximum Value Limit Mode
Overload monitoring based on the maximum load value
② Press Capacity Mode
Overload monitoring based on the entire press capacity curve.
③ Waveform Limit Mode
Overload monitoring based on the standard waveform. - The recipe bank function is a standard feature, enabling load management for each individual die. And the touchscreen HMI crisply displays all the data and load waveforms.
- A Windows PC-based load analysis software package is also available. (Option)
Model | ALA3 |
---|---|
No. of Measurement Points | 1, 2, and 4 points(4 Points: Strain sensors only) |
Max. Press Speed | 600 min-1 |
Maximum Load Measurement Value | 50000 kN |
Recipe Bank Capacity | 999 dies (waveform data, measurement conditions, display conditions, and product name) |
Language | Japanese, English, Chinese and Spanish |
Display | Color HMI |
Weight | 6.5 kg |
Unit Specifications | External Dimensions (W: 222, H: 220, D: 281) ・AC: 100 ~ 240 V ・Power Consumption: ≤60 W |
