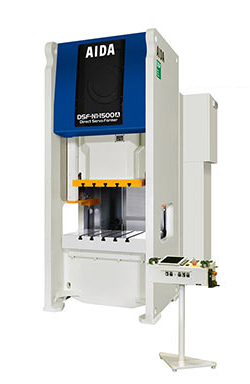

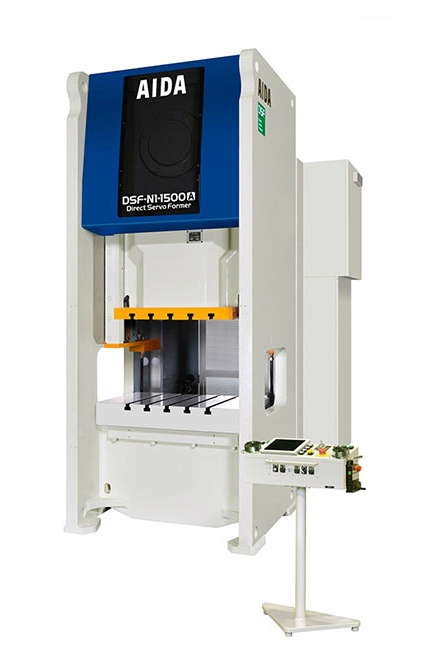

General-Purpose Servo PressesAIDA Direct Servo Formers DSF-N1-A Series
We have added a highly rigid straightside frame model to our lineup of evolved A-Series servo presses.
- Features
In addition to the three evolutions of "productivity," operability," and “energy saving" incorporated into our new A-Series Direct Servo Former, the N1-A Series is equipped with two additional features. - The frame shape has been redesigned, and the bolster rigidity has been boosted 50%※1 compared to previous models.
- The service life of electrical components is extended by housing them in a cabinet that is isolated from the frame.
- ※1Compared to previous AIDA servo presses.
Capacity Range
Press capacities range from 800 kN to 3,000 kN.
| Model | Capacity | Stroke Length | Continuous SPM (No Load)※1 | Die Height | Slide Area | Bolster Area | Frame Gap ※2 |
|---|---|---|---|---|---|---|---|
| (kN) | Upper Row Denotes Fwd/Rev. Motion(mm)※2 | Upper Row Denotes Fwd/Rev. Motion(spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | |
| DSF-C1-800 | 800 | 60/100/130 | 118/96/82 | 320 | 540×460 | 1030×600 | 310 |
| 160 | ～80 | ||||||
| DSF-C1-1100 | 1100 | 70/110/150 | 114/93/76 | 350 | 630×520 | 1140×680 | 350 |
| 180 | ～70 | ||||||
| DSF-C1-1500 | 1500 | 80/120/160 | 100/82/68 | 400 | 700×580 | 1250×760 | 390 |
| 200 | ～60 | ||||||
| DSF-C1-2000 | 2000 | 110/160/200 | 81/67/57 | 450 | 880×650 | 1470×840 | 430 |
| 250 | ～50 | ||||||
| DSF-C1-2500 | 2500 | 120/180/240 | 72/59/48 | 540 | 1100×730 | 1750×900 | 470 |
| 300 | ～40 |
- ※1The above Strokes per Minute (No Load) value is for crank motion.
- ※2The Fwd/Rev. stroke length is freely programmable.
