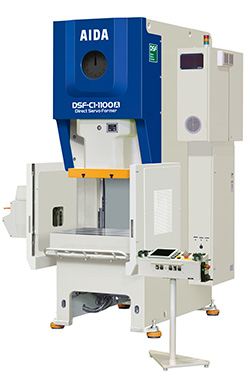

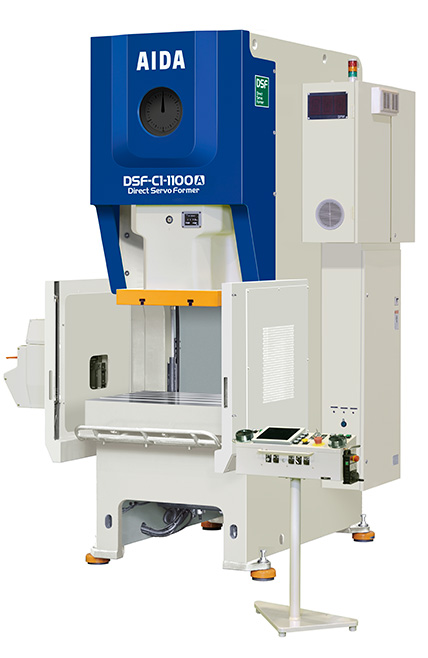

General-Purpose Servo PressesAIDA Direct Servo Formers DSF-C1-A Series
The Next Evolution in Direct Servo Formers.
- (1)Enhanced Productivity
Equipped with a newly-developed AC servo motor and a lighter-weight drivetrain, the pendulum motion SPM has been increased between 5~10% compared to existing servo presses. (Compared to existing AIDA servo presses.) - (2)Improved Operability
When combined with an AIDA feeder, production can be optimized via simple settings. - (3)A Machine with High Energy-Efficiency
Equipped with Energy-Conserving ECO Modes. The electrical power monitor is standard equipment.
Using a selector button, you can now select between three new modes--Standard, ECO1, and ECO2--to optimize the electrical power consumption in the non-forming portion of the stroke. This enables reduced power consumption based on production conditions. Additionally, electrical current fluctuations at the primary-side power source are constrained via a power supply converter that is equipped with control features.
Capacity Range
Press capacities range from 800 kN to 2500 kN.
| Model | Capacity | Stroke Length | Continuous SPM (No Load)※1 | Die Height | Slide Area | Bolster Area | Frame Gap ※2 |
|---|---|---|---|---|---|---|---|
| (kN) | Upper Row Denotes Fwd/Rev. Motion(mm)※2 | Upper Row Denotes Fwd/Rev. Motion(spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | |
| DSF-C1-800 | 800 | 60/100/130 | 118/96/82 | 320 | 540×460 | 1030×600 | 310 |
| 160 | ～80 | ||||||
| DSF-C1-1100 | 1100 | 70/110/150 | 114/93/76 | 350 | 630×520 | 1140×680 | 350 |
| 180 | ～70 | ||||||
| DSF-C1-1500 | 1500 | 80/120/160 | 100/82/68 | 400 | 700×580 | 1250×760 | 390 |
| 200 | ～60 | ||||||
| DSF-C1-2000 | 2000 | 110/160/200 | 81/67/57 | 450 | 880×650 | 1470×840 | 430 |
| 250 | ～50 | ||||||
| DSF-C1-2500 | 2500 | 120/180/240 | 72/59/48 | 540 | 1100×730 | 1750×900 | 470 |
| 300 | ～40 |
- ※1The above Strokes per Minute (No Load) value is for crank motion.
- ※2The Fwd/Rev. stroke length is freely programmable.
