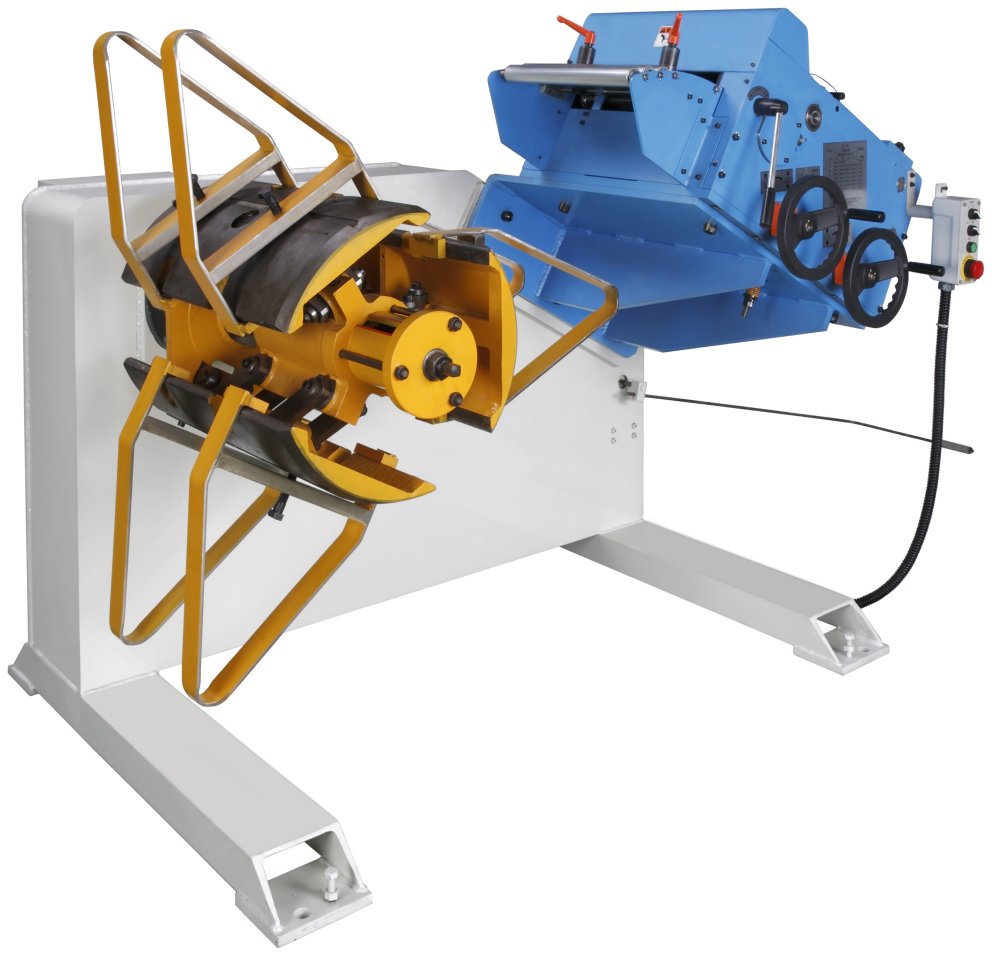

Coil FeedersCombined Uncoiler-Straightener L Series
Achieving high cost-performance automation.
- The L-Series specification has 13 work rolls with hard chrome-plated.
- Auto-control of straightener speed(The straightener runs continuously, thereby preventing roll (stop) marks.) when used in combination with the F-Series.
- The upper rolls can be opened wide to enable easy maintenance.
Capacity Range
The L Series processes strips 300 and 400 mm wide. Single or double type uncoilers are available.
Model | Coil Material | Coil weight | Coil O.D. | Coil I.D. | Material Thickness x Width (mm) | Straightener Speed | Feed Direction | No. of Work Rolls | |
---|---|---|---|---|---|---|---|---|---|
Max(kg) | (mm) | (mm) | Thickness | Width | (m/min) | ※1 | |||
L-30 | Cold- & warm-formed steel sheets | 1200 | Maxφ1200 | φ508 | 0.3~1.0 | 30~300 | 1.8~18.0 | Left to right | 13 |
0.3~1.6 | 30~200 | ||||||||
0.3~2.3 | 30~95 | ||||||||
0.3~3.2 | 30~50 | ||||||||
L-30W | Cold- & warm-formed steel sheets | 1200×2 | Maxφ1200 | φ508 | 0.3~1.0 | 30~300 | 1.8~18.0 | Left to right | 13 |
0.3~1.6 | 30~200 | ||||||||
0.3~2.3 | 30~95 | ||||||||
0.3~3.2 | 30~50 | ||||||||
L-40 | Cold- & warm-formed steel sheets | 1200 | Maxφ1200 | φ508 | 0.3~0.6 | 30~400 | 2.2~22.0 | Left to right | 13 |
0.3~1.6 | 30~300 | ||||||||
0.3~2.3 | 30~150 | ||||||||
0.3~3.2 | 30~80 | ||||||||
L-40W | Cold- & warm-formed steel sheets | 1200×2 | Maxφ1200 | φ508 | 0.3~0.6 | 30~400 | 2.2~22.0 | Left to right | 13 |
0.3~1.6 | 30~300 | ||||||||
0.3~2.3 | 30~150 | ||||||||
0.3~3.2 | 30~80 |
- ※1Right→Left Direction is also available.(option)
