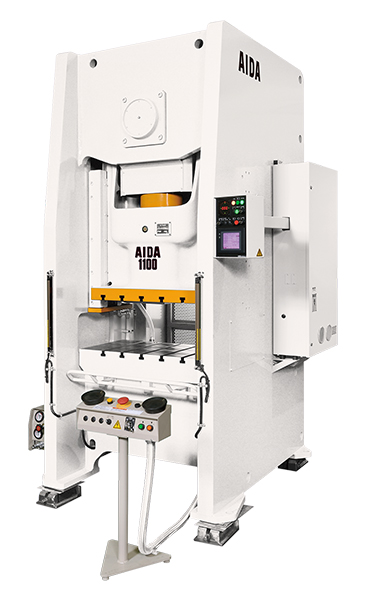

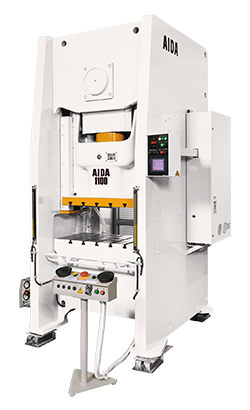

General-Purpose PressesAIDA Straightside Stamping Press NS1 Series
The next generation of high-performance basic machines
- Achieving high-precision and high value-added forming.
- Its unitized straightside construction eliminates frame deflection.
- Equipped with a recirculating lubrication system.
- Centered full-length slide guiding.
Capacity Range
Press capacities range from 800 kN to 2000 kN.
| Model | Capacity | Stroke Length | Strokes per minute (No Load) | Die Height | Slide Area | Bolster Area | Side opening※ | Working surface height | |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (mm) | ||
| NS1-800 | (S) | 800 | 60 | 75～150 | 300 | 700×460 | 900×460 | 440×220 | 900 |
| (1) | 800 | 100 | 55～125 | 300 | 700×460 | 900×460 | 440×220 | 900 | |
| (1NL) | 800 | 100 | 55～110 | 300 | 700×460 | 900×460 | 440×220 | 900 | |
| NS1-1100 | (S) | 1100 | 70 | 65～135 | 320 | 800×520 | 1000×520 | 500×240 | 900 |
| (1) | 1100 | 110 | 50～110 | 320 | 800×520 | 1000×520 | 500×240 | 900 | |
| (1NL) | 1100 | 110 | 50～100 | 320 | 800×520 | 1000×520 | 500×240 | 900 | |
| NS1-1500 | (S) | 1500 | 80 | 55～115 | 350 | 900×580 | 1150×600 | 560×280 | 900 |
| (1) | 1500 | 130 | 40～95 | 350 | 900×580 | 1150×600 | 560×280 | 900 | |
| (1NL) | 1500 | 130 | 40～85 | 350 | 900×580 | 1150×600 | 560×280 | 900 | |
| NS1-2000 | (S) | 2000 | 95 | 45～95 | 410 | 1000×650 | 1250×680 | 620×330 | 1000 |
| (1) | 2000 | 160 | 35～80 | 410 | 1000×650 | 1250×680 | 620×330 | 1000 | |
| (1NL) | 2000 | 160 | 35～70 | 410 | 1000×650 | 1250×680 | 620×330 | 1000 | |
- ※Dimensions show the height above the bolster.
