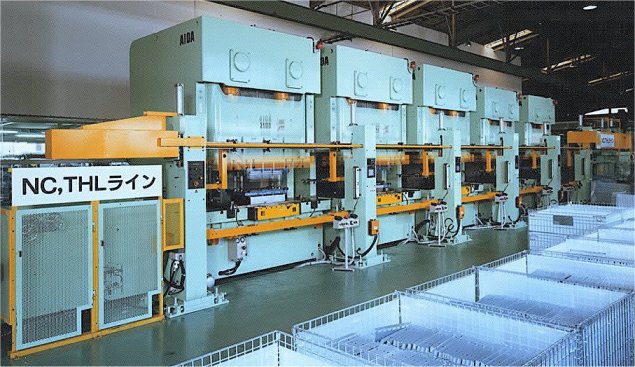

Transfer EquipmentAIDA Linepacer NCTHL Series
The two-axis servo drive provides a simple, yet highly versatile line offering low-shock high-speed transfer.
- Shorter overall line length saves factory floorspace.
- Direct transfer can reduce equipment costs versus systems that station multiple robots between presses.
- Given a broad range of conveying strokes available in one line, multi-stage procession can also possible.
Capacity Range
Lines are available in feed lengths of 1500 and 3000 mm. Extensive peripheral devices such as blank or coil feed units and intermediate stages are also available.
| Model | Conveyance Type | Drive Type | Feed Stroke※1 | Lift Stroke | Total Conveyance Weight(Max) (Work+Clamp) |
Number of Presses in Line | Cycle Time | Clamp Method |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (kg) | (units) | (sec) | ||||
| NCTHL-150/10 | Feedbar type | Feed-lift 2-axis servo motor type | 700～900 | 20～60※2 | 3.0 | 6※3 | 2.0～2.1 | Vacuum or magnetic |
| 1000～1200 | 3.5 | 2.2～2.5 | ||||||
| 1300～1500 | 4.0 | 2.6～2.9 | ||||||
| NCTHL-300/10 | Carrier type | Feed-lift 2-axis servo motor type | 1600～1800 | 20～60※2 | 4.5 | 3.0～3.2 | Vacuum or magnetic | |
| 1900～2400 | 5.0 | 6 | 3.3～3.7 | |||||
| 2500～3000 | 6.0 | 3.7～3.8 |
- ※1Feed stroke selections are fixed.
- ※2The lift stroke can be adjusted in 0.1 mm increments.
- ※3Up to 8 presses in the case of direct conveyance.
