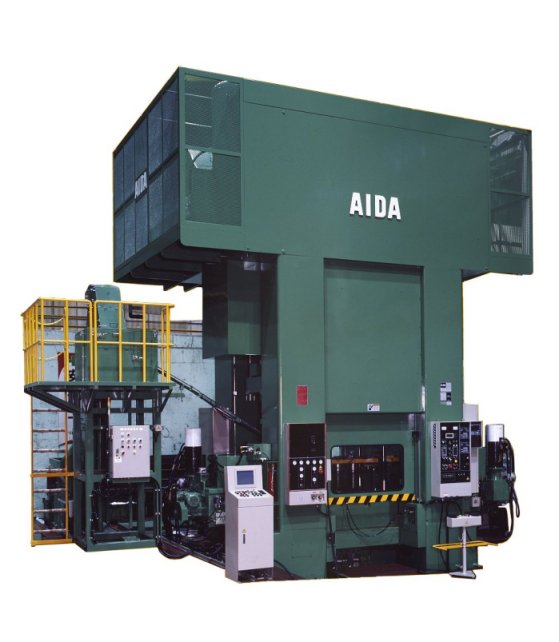

Cold Forging PressesAIDA Cold Forging Press FMX Series
Forming technology expectations continually drive machine evolution.
- 2-point full-length slide guiding and high allowable eccentric loading capability expand the die process design possibilities.
- Link motion broadens the forming range and enables even greater product accuracy as well as improvements in productivity.
Capacity Range
Press capacities range from 2500 kN to 12000 kN. Also, a 3-axis transfer unit is available as an option.
| Model | Capacity | Stroke Length | Strokes per minute | Die Height | Slide Area | Bolster Area | Rated tonnage point | Bed Knockout capacity | Number of stages |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (kN) | ||
| FMX-400 | 4000 | 300 | 25～40 | 600 | 900×1000 | 900×1000 | 13 | - | - |
| 400 | 20～30 | 900 | 900×1000 | 900×1000 | 13 | 240/100,240,100 | 3 | ||
| FMX-630 | 6300 | 300 | 20～30 | 650 | 1100×1000 | 1100×1000 | 13 | - | - |
| 400 | 15～25 | 1000 | 1100×1000 | 1100×1000 | 13 | 300/120,300,120 | 3 | ||
| FMX-800 | 8000 | 300 | 15～30 | 650 | 1200×1000 | 1200×1000 | 13 | - | - |
| 400 | 15～25 | 1000 | 1200×1000 | 1200×1000 | 13 | 500/200,500,200 | 3 | ||
| FMX-1000 | 10000 | 300 | 15～30 | 700 | 1200×1000 | 1200×1000 | 13 | - | - |
| 400 | 15～25 | 1000 | 1200×1000 | 1200×1000 | 13 | 500/200,500,200 | 3 | ||
| FMX-1200 | 12000 | 300 | 15～30 | 650 | 1300×1200 | 1300×1200 | 13 | - | - |
| 400 | 15～25 | 1100 | 1250×1000 | 1250×1000 | 13 | 600/240,600,240 | 3 |
