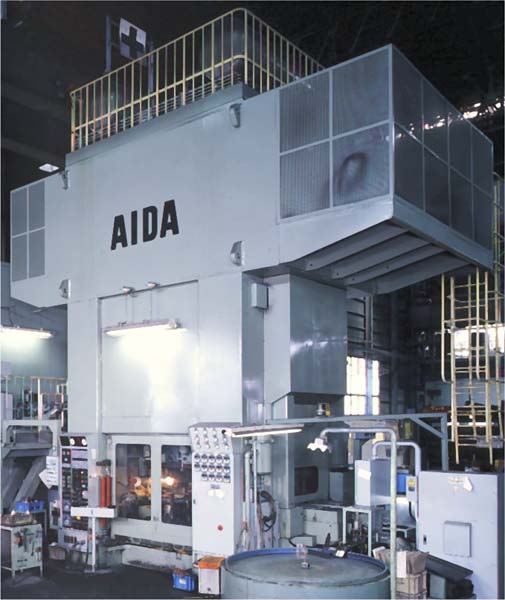

Cold Forging PressesAIDA Cold Forging Transfer Press CFT Series
High productivity using proven transfer technology.
- The 2-point suspension straightside frame has high rigidity.
- Excellent eccentric loading capability significantly extends tooling die life.
Capacity Range
Press capacities range from 6000 kN to 20000 kN.
Model | Capacity | Stroke Length | Strokes per Minute | Die Height | Slide Adjustment | Slide Area | Bolster Area | Rated Tonnage Point | Slide Knockout Stroke Length | Number of Stages |
---|---|---|---|---|---|---|---|---|---|---|
(kN) | (mm) | (min-1) | (mm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (mm) | ||
CFT-6000 | 6000 | 250 | 25~40 | 650 | 30 | 1100×1000 | 1100×1100 | 7 | 90 | 3 |
CFT-10000 | 10000 | 400 | 25~35 | 650 | 50 | 1500×1000 | 1500×1100 | 7 | 150 | 3 |
CFT-12000 | 12000 | 400 | 15~30 | 650 | 50 | 1500×1000 | 1500×1100 | 13 | 150 | 3 |
