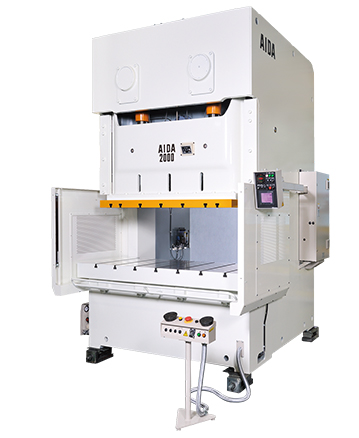

General-Purpose PressesAIDA Gap (C Frame) Stamping Press NC2-E Series

High-performance basic machines with a wide bed

Features

  • Featuring a highly rigid frame and a counter-rotating gear design that can withstand eccentric loading.
  • Minimal overall clearances that reduce breakthrough have been achieved through the high-precision machining of each structural component.
  • Provides high versatility for a wide array of applications. Can be leveraged by pairing it with a coil line or a transfer, etc.

Capacity Range

Press capacities range from 1100 kN to 2500 kN.

Primary Specifications

Model Tonnage Capacity Stroke Length Strokes per minute (No Load) Die Height Slide Area Bolster Area Frame Gap Working surface height
(kN) (mm) (spm) (mm) LR×FB(mm) LR×FB(mm) (mm) (mm)
NC2-1100 (1)E 1100 110 50~100 350 1360×520 1880×520 270 900
(2)E 1100 180 35~65 400 1360×520 1880×680 350 900
NC2-1600 (1)E 1600 130 40~85 400 1500×580 2040×600 310 900
(2)E 1600 200 30~55 450 1500×580 2040×760 390 900
NC2-2000 (1)E 2000 150 35~70 450 1850×650 2420×680 350 1000
(2)E 2000 250 25~45 500 1850×650 2420×840 430 1000
NC2-2500 (1)E 2500 170 25~55 450 2100×700 2700×760 390 1100
(2)E 2500 280 20~35 550 2100×700 2700×920 470 1100
