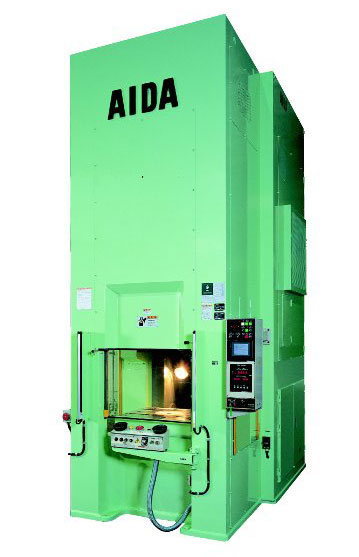

Cold Forging PressesAIDA Cold Forging Press K1-E Series
A basic cold forging machine for forming high-grade components.
- The K1 E is equipped with a strong highly rigid unitized frame, right-angle long six-sided slide guides, and a quick-response hydraulic overload protection system.
- Bed knockouts (option) are compact and integrated into the bed makes continuous operation possible.
Capacity Range
Press capacities range from 1600 kN to 10000 kN.
| Model | Capacity | Slide stroke | Strokes per minutes under no load | Die Height | Slide Area | Bolster Area | Rated tonnage point | Bed Knockout capacity | Knockout stroke |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (mm) | (kN) | (mm) | |
| K1-2500E | 2500 | 160 | 30～60 | 400 | 600×400 | 600×500 | 7 | 120 | 80 |
| K1-4000E | 4000 | 180 | 30～50 | 450 | 700×500 | 700×600 | 7 | 200 | 90 |
| K1-6300E | 6300 | 220 | 25～45 | 550 | 800×600 | 800×700 | 7 | 320 | 110 |
| K1-10000E | 10000 | 250 | 25～40 | 650 | 1000×900 | 1000×900 | 10 | 500 | 110 |
