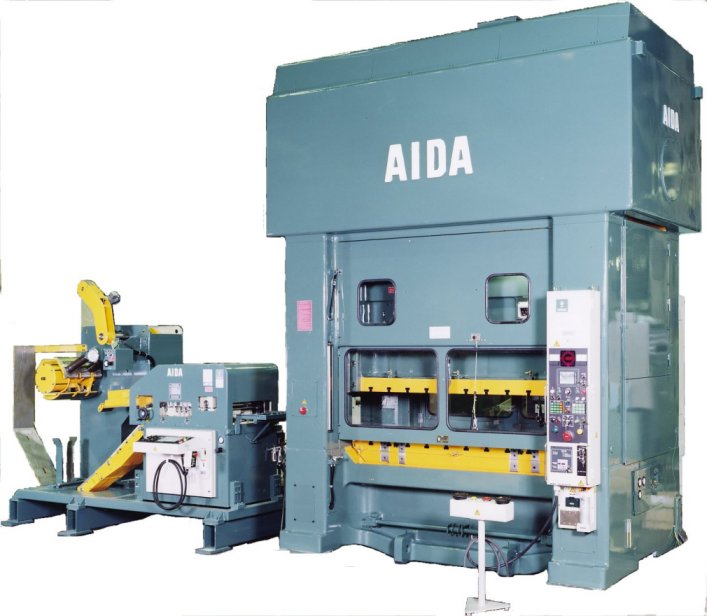

Mid-Size and Large PressesAIDA Progressive Die Mechanical Press
PMX Series
A basic machine for high-precision progressive die applications.
- Link motion improves productivity and assures stable high-precision forming.
- The wide spacing between the points enables it to reliably withstand off-center loads.
- The highly rigid frame can withstand the progressive stamping of thick plate material.
- The symmetrical front-to-back and left-to-right frame maintains high dynamic accuracy.
Capacity Range
Press capacities range from 2000 kN to 6000 kN. Besides link motion, crank motion is also available. Large-size presses are treated individually.
Model | Capacity | Stroke Length | Strokes per minute under no load | Die Height | Slide Area | Bolster Area | Max upper die weight | Side opening | |
---|---|---|---|---|---|---|---|---|---|
(kN) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (kg) | (mm) | ||
PMX-2000 | PMX-L2-2000(1)155-83 | 2000 | 200 | 50~120 | 475 | 1550×830 | 1550×950 | 1000 | 850×375 |
PMX-L2-2000(1)155-88 | 2000 | 200 | 50~120 | 475 | 1850×880 | 1850×950 | 1000 | 850×375 | |
PMX-3000 | PMX-L2-3000(1)185-88 | 3000 | 200 | 40~100 | 550 | 1850×880 | 1850×1000 | 1000 | 900×450 |
PMX-L2-3000(1)215-100 | 3000 | 200 | 40~100 | 550 | 2150×1000 | 2150×1000 | 1500 | 1020×450 | |
PMX-L2-3000(1)245-120 | 3000 | 200 | 40~100 | 550 | 2450×1200 | 2450×1200 | 1500 | 1220×450 | |
PMX-4000 | PMX-L2-4000(1)215-115 | 4000 | 200 | 30~80 | 650 | 2150×1150 | 2150×1250 | 3000 | 1170×550 |
PMX-L2-4000(1)245-115 | 4000 | 300 | 30~60 | 700 | 2450×1150 | 2450×1250 | 3000 | 1170×550 | |
PMX-5000 | PMX-L2-5000(1)215-115 | 5000 | 250 | 30~70 | 700 | 2150×1150 | 2150×1250 | 3000 | 1170×600 |
PMX-L2-5000(1)245-115 | 5000 | 250 | 30~70 | 700 | 2450×1150 | 2450×1250 | 3000 | 1170×600 | |
PMX-6000 | PMX-L2-6000(1)245-125 | 6000 | 250 | 30~70 | 750 | 2450×1250 | 2450×1400 | 3000 | 1270×650 |
