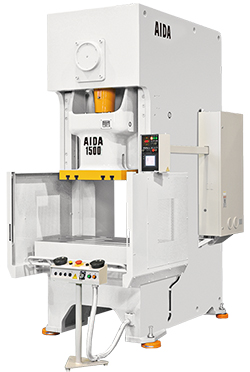

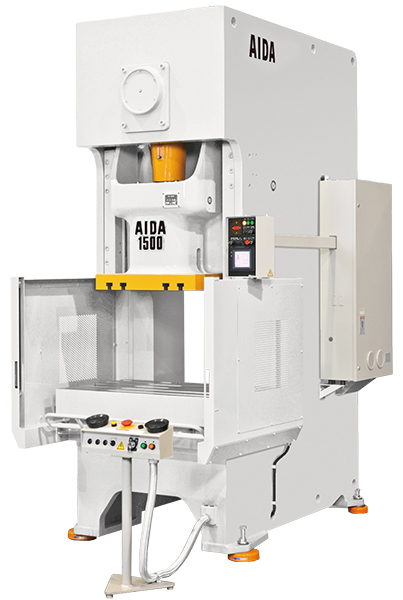

General-Purpose PressesAIDA Gap (C Frame) Stamping Press NC1-E Series

High-performance basic machine

Features

  • The highly rigid frame construction minimizes frame elongation and deflection that occurs during stamping.
  • AIDA's Hydraulic Overload Protector (HOLP) activates instantaneously, protecting press and tooling, and it resets automatically.
  • To further improve safety and operability, the press operation circuit uses a multiprocessing press controller (MPC) unique to AIDA, and includes a large touch screen interface.

Capacity Range

Press capacities range from 350 kN to 2500 kN.

Primary Specifications

Model Capacity Stroke Length Strokes per minute (No Load) Die Height Slide Area Bolster Area Frame Gap
(kN) (mm) (spm) (mm) LR×FB(mm) LR×FB(mm) (mm)
NC1-350 (1)E 350 70 90~150 200 380×300 730×310 160
(2)E 350 120 55~105 250 380×300 730×380 195
NC1-450 (S)E 450 50 85~170 250 410×340 810×360 185
(1)E 450 80 65~130 250 410×340 810×360 185
(2)E 450 120 50~95 270 410×340 810×440 225
NC1-600 (S)E 600 55 80~165 270 480×400 870×400 210
(1)E 600 90 60~120 270 480×400 870×400 210
(2)E 600 140 45~85 300 480×400 870×520 270
NC1-800 (1)E 800 100 55~110 300 540×460 950×460 240
(2)E 800 160 40~75 320 540×460 950×600 310
NC1-1100 (1)E 1100 110 50~100 320 630×520 1070×520 270
(2)E 1100 180 35~65 350 630×520 1070×680 350
NC1-1500 (1)E 1500 130 40~85 350 700×580 1170×600 310
(2)E 1500 200 30~55 400 700×580 1170×760 390
NC1-2000 (1)E 2000 160 35~70 410 880×650 1390×680 350
(2)E 2000 250 25~45 450 880×650 1390×840 430
NC1-2500 (2)E 2500 300 20~35 540 1100×730 1750×900 470
