Mid-Size and Large PressesAIDA Wide Area Stamping Press SMX Series
A highly rigid, high-precision basic machine that provides superior basic performance.
- The soft touch of link motion (optional) keeps die heat generation to a minimum, and the long restriking time and quick return action assures stable product quality.
- The total clearance is even smaller than the JIS Crank Press Grade 1 specification. Reduces noise and the minimal breakthrough extends die life.

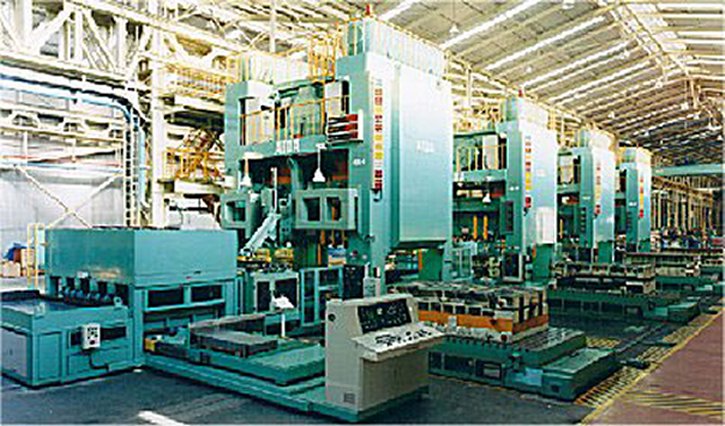

- Optimal for medium and large panel forming and deep draw applications. Suited for fully automatic tandem line systems as well as for single-strike forming.
Capacity Range
Standard Specification range from 2000 kN to 5000 kN. Large-size presses are treated individually.
| Model | Capacity | Rated tonnage point above BDC | Stroke Length | Strokes per minute (No Load) | Die Height | Slide Area | Bolster Area | Die cushion capacity | Die cushion Stroke Length |
|---|---|---|---|---|---|---|---|---|---|
| (kN) | (mm) | (mm) | (spm) | (mm) | LR×FB(mm) | LR×FB(mm) | (kN) | (mm) | |
| SMX-II-L2-2000 | 2000 | 6.5 | 300 | 20～40 | 600 | 2150×1200 | 2150×1300 | 320 | 120 |
| SMX-II-L2-3000 | 3000 | 13 | 460 | 15～30 | 700 | 2150×1250 | 2150×1400 | 480 | 180 |
| 500 | 800 | 2450×1250 | 2450×1400 | ||||||
| SMX-II-L2-4000 | 4000 | 13 | 460 | 15～30 | 800 | 2500×1250 | 2500×1400 | 800 | 250 |
| 510 | 900 | 2750×1250 | 2750×1400 | ||||||
| SMX-II-L2-5000 | 5000 | 13 | 460 | 15～30 | 800 | 2500×1400 | 2500×1500 | 1000 | 250 |
| 510 | 900 | 2750×1400 | 2750×1500 | ||||||
| SMX-II-L2-6000 | 6000 | 13 | 510 | 15～25 | 900 | 2750×1500 | 2750×1500 | 1000 | 250 |
| 600※ | 900 | 2750×1500 | 2750×1500 |
- ※Stroke Length (SMX-II-L2-6000) is for crank motion.
